Basic information and history

The 1966 Ford Mustang marks the refined first-generation design with an updated grille, subtly revised side trim and a more streamlined interior. The body is compact with a clear pontoon line and short overhangs, and the model was known from the start for its reasonable weight, simple mechanics and good upgrade options. The combination of the small block V8 and manual transmission makes the 1966 Mustang particularly popular with drivers who prioritize response and gear feel.

This example was imported from the USA and completely renovated in Sweden in 2003–2005. The body was then stripped down to bare metal, both inside and out, and painted in the original color Ivy Green Metallic . According to the seller, the current mileage is 55,000 kilometers. The engine has been rebuilt with components from quality suppliers and, according to the seller, has traveled approximately 8000 kilometers since assembly in 2018. The number of previous owners is not specified by the seller. The car is equipped and modified for improved drivability, durability and roadholding, while the interior maintains a close-to-original appearance. The information below is provided by the seller.

Equipment and options

• Standard interior from the factory in the color Parchment, new door panels, new upholstery, new carpet, new headliner and renovated dashboard during renovation

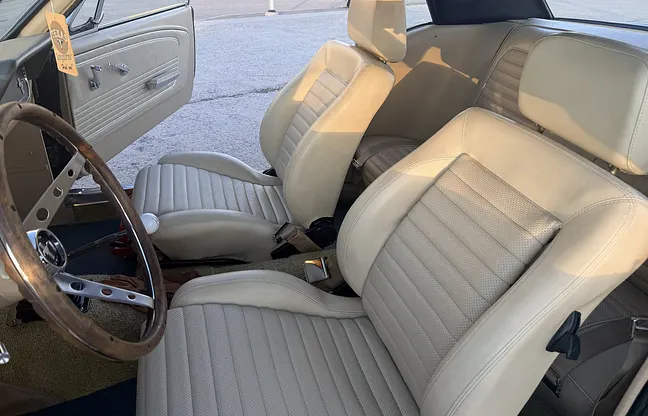

• Front seats replaced with Recaro from Golf Mk2, professionally reupholstered to match original materials; original seats included if desired
• Three-point seat belts in the front and lap belts in the rear
• Original-look stereo with Bluetooth, discrete 8" Rockford Fosgate Punch P1 subwoofer, Pioneer GM-A3702 500 W power amplifier
• Sony speakers in the dashboard and 5x7" in the parcel shelf

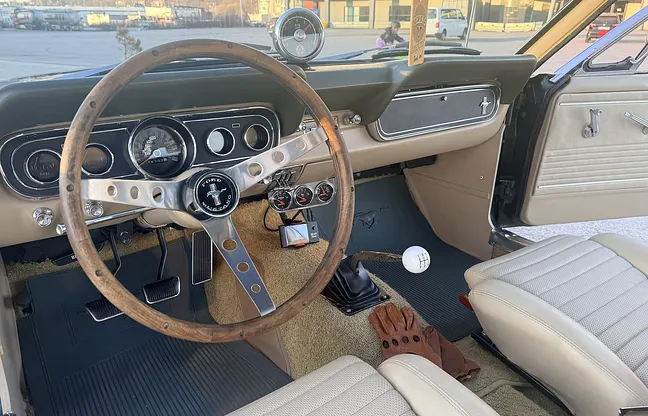

• Wooden steering wheel, aftermarket
• Custom-made tachometer with Shelby look, mounted on the dashboard
• Autometer gauges 53 mm under the dashboard: water temperature (Fahrenheit), oil pressure (PSI), boost pressure (PSI)
• Discreet shift light on the steering column with adjustable speed
• Hurst gear lever with contemporary patina
• Line lock with button on specially built handle and quick connector under the dashboard

Modifications and improvements

Body and chassis : Subframe connectors that connect the front and rear frame rails for increased torsional rigidity. Classic Shelby lowering in the front, lower leaf springs in the rear and stronger mountings. Adjustable panhard bar for improved lateral stability. CalTracks to stabilize the rear under heavier throttle. US Mags U102 17x7" rims. 289 emblems on the front fenders removed and front and rear bumper horns and chrome strips on the kickstands removed for a cleaner look.

Drivetrain : Dart SHP 8.2" block, AFR 165cc aluminum heads, Paxton 1200SL supercharger, Weiand dual plane intake, Fitech fuel injection, custom ground roller cam, MSD ignition, forged Diamond pistons, forged Eagle H-beam rods, forged Eagle crankshaft. 1993 Mustang Cobra five-speed Ford T5-Z, reinforced with girdle. Ford SFI 1.1 flywheel, RAM Powergrip 98794 clutch and Tilton hydraulic release bearing with Wilwood master cylinder. 8" rear axle with LSD and 3.55 ratio, Mooser Engineering Street axles. *Full specification at the bottom of the text*

Brakes : Wilwood front disc brakes with four-piston calipers and 287 mm discs, dual circuit conversion and Wilwood master cylinder. Original rear drum brakes in good condition.

Condition

Body and exterior : According to the seller, the paint is in very good condition with minimal stone chips. During the restoration in 2003–2005, the body was blasted to a clean sheet metal condition and painted in the original color Ivy Green Metallic. Known remarks include a small dent on the upper part of the B-pillar towards the roof on the passenger side. Partially repainted. Rear fenders, doors and front fenders have recently been repainted to address minor cosmetic defects. The overall impression is stated to be well-balanced.

Sheet metal and bodywork : Rear fender on the driver's side has been replaced with a reproduction fender. Lower parts of fenders and doors have been renovated with new sheet metal. Rear lower part of the trunk lid has been given new sheet metal. Floors on both sides have been replaced with handmade sheet metal with slightly greater material thickness than reproduced sheet metal. Replaced sheet metal at air intake on both sides.

Chrome, moldings and glass : New reproduction bumpers in good quality. The moldings around the windshield and rear window are original and have been straightened and polished, there are a few small dents. The chrome around the side windows is original with some wear over time but a shiny surface. New H4 headlights, other headlight lenses in very good condition. The windshield was replaced during the renovation, light wear from the wipers, other windows are original and in good condition.

Interior : The interior is reported to be in very good condition with minimal wear. New upholstery, door panels and carpet. Black headliner in very good condition. Steering wheel, controls and buttons are reported to be in very good condition. Door sills show minor signs of use.

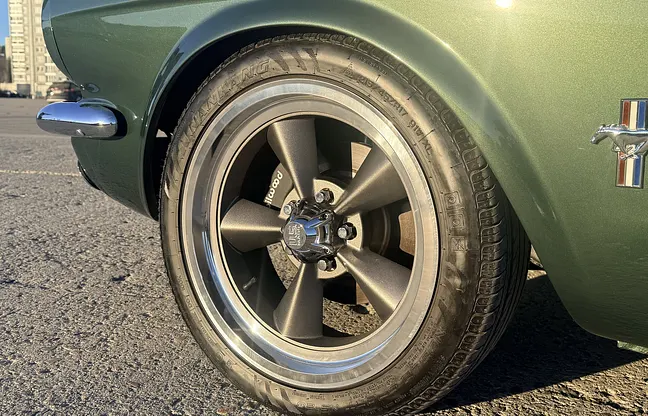

Tires and rims : US Mags U102 17x7". Rear tire Nitto NT05 R‑tire 225/45 R17. Front tire Nangkang Sport NS‑20 stated dimension 125/45 ZR17. Tread depth front approx. 7mm, rear approx. 4mm.

Mechanics and function : The engine is reported to be in very good condition and has covered approximately 8000 km since assembly in 2018. Fuel injection from Fitech and Paxton compressor provide smooth running and good response. The brakes are servo-less with Wilwood front and dual-circuit conversion, which provides a distinct pedal. The gearbox and driveline are reported to be in very good condition with T5-Z, short linkage and hydraulic release bearing. Differential with LSD and 3.55 ratio.

Service history

Last serviced in April 2026 according to the seller. There is an extensive set of receipts that prove both the renovation and later upgrades, including the engine rebuild in 2018. Body renovation was carried out in Sweden in 2003–2005 with documented repainting and sheet metal work.

Summary

1966 Ford Mustang HT with bodywork restored to mint condition and painted in Ivy Green Metallic, further developed with reinforced chassis, Wilwood brakes and modernized drivetrain. The engine is newly built with Dart block, AFR heads, forged internals and Paxton supercharger in combination with Fitech injection. The gearbox is a T5-Z with short linkage and hydraulics, rear axle with LSD and 3.55 ratio. The interior is tastefully updated with original expressions, Bluetooth stereo in classic look and discreet gauge installation.

Imported from the USA, renovated in Sweden and according to the seller well-coordinated in both technology and execution. A Mustang for the driver who wants classic form with modern function and a clear mechanical feel. Details according to the seller.

Engine

306cui (5.0 liter) Small block V8 Supercharged

Compression 9.3. approx. 0.5 bar in boost pressure

482whp @5970RPM, 600nm @5100RPM

Supercharging: Paxton Novi 1200SL Centrifugal Compressor #PAX-1201850

Block: Dart SHP - Deck Height: 8.2" Bore: 4.030" #31374175

Cylinder head: AFR 165cc, 58cc #1399

Cylinder head bolts: ARP stud bolt

Crankshaft: Eagle 3,000 stroke. 4340 Forged, internal balance #CRS-430230015090

Frame Stock: King XP-Series Performance #MB529XP

Connecting Rods: Eagle 5.090" H Profile 4340 Forged. ARP200 Bolt #CRS5090F3D

Connecting Rod Bearing: King XP-Series Performance #CR804XPN

Pistons: Diamond Flat tops +6.00cc. 2618 Forged alu. #31001-8

Piston Rings: Total Seal Classic Race Plasma Moly #CR3690-35

Bolts other: ARP

Intake: Weiand Street Warrior #8124WND

Camshaft: Custom ground roller cam, Flowtech Induction Gross valve lift @1.60 ratio Intake .584" Exhaust .584" Duration @ .050" tappet lift: Intake 219° Exhaust 227°

Lifter: Ford Performance #FMS-M-6500-R302

Rocker Arms: Comp Cams Ultra Pro. Roller rockers, Chromoly. #1632-16

Strut Bars: Trick Flow 5/16”, 6.450”. 4130 Chromoly #TFS-21406450

Valve covers: Brushed aluminum.

Timing gear: Cloyes street true roller #9-1138

Anti-vibration damper: Pioneer Race Balancer #872034

Oil pan: Moroso Street/Strip 7qt #20502 • Oil pump/pickup: Melling Standard volume #M68 Moroso oil pickup #24520

Headers: Patriot Clipster mid-length. 1 5/8". Silver ceramic coating #H8433-1

Exhaust system: Stainless 2.5” X-pipe Magnaflow muffler.

Engine Pads: Prothane Motion Control #6-503-BL

Ignition and electricity

Distributor: MSD #8479

Ignition box: MSD Street Fire #5520

Ignition coil: MSD Blaster Fuel and cooling

Fuel injection: Fitech Go EFI 4 600HP #30001 • Fuel pump: Walbro 255l/h #GSS342 255

Water pump: GMB high Performance, high volume #125-1420P

Radiator: Engineered Cooling Products # RAD-5711S

Driveline

Gearbox: Ford T5Z. Reinforced with belt.

Rear Axle: Ford 8" LSD. Mooser Engineering Street axles #A2864MUST

3.55 gear ratio

Flywheel: Ford Performance Billet steel. Internal balance. SFI 1.1 #M-6375-D302B

Clutch: RAM Powergrip #98794

Hydraulic release bearing: Tilton 6000-series Chassis, brakes and steering

Subframe connectors

Stronger strut braces

CalTracks Spring Stabilizer Bar #6411

Panhard rod, adjustable.

Brake system: Wilwood master cylinder, 2-circuit without servo. #260-12900

Front brakes: Wilwood Classic Series Dynalite 11.30” (287mm) #140-13476

Rear brakes: Original drums.

Stage control kit # 555-63002

Steering: Custom-made rack and pinion, manual
